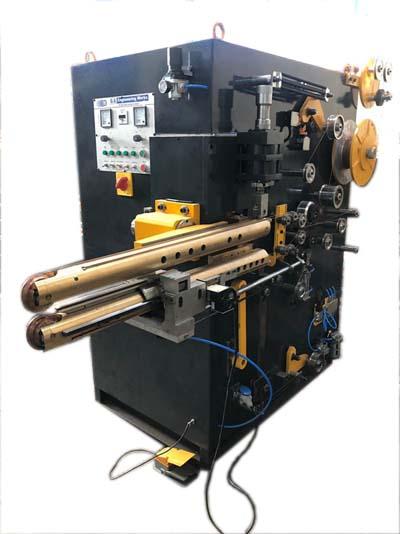

WELDABILITY:- The machine is capable of welding a wide range of material, tin sheet, black & TFS sheets with thickness ranging from 0.2mm to 0.4mm and body diameter ranging from 52mm to 300mm and body height up to 450mm depending on the lower arm size.
INTERMEDIATE ELECTRODE:- Use of electrolytic copper wire as an intermediate electrode between weld wheel and tinsheet, avoid deposition of molten tin on weld wheels and ensures consistent, quality weld without frequent cleaning of wheels.
WELDING ARMS:- Upper arms made out of high tensile brass is common for complete range of container diameters and is attached by hydro pneumatic – damping cylinder to avoid initial impact on contact with lower weld wheel and to maintain constant welding force. Lower arm consist of guide rail, Z-bar, weld wheel etc.
SPECIFICATIONS:
Input Power Supply: 415 V, 3 Phase
Weld Speed : 5Mtr. - 23 Mtr. (Drive Control)
Control: Siemens Contactor Control
Cooling: Water Cooled
Net Weight : 1100 Kg (Approx)
STANDARD ARMS SIZE: I II III
Range of Tin Dia. 100 - 300 65 - 100 52 - 65
Max. Length in mm 450 325 200 |
