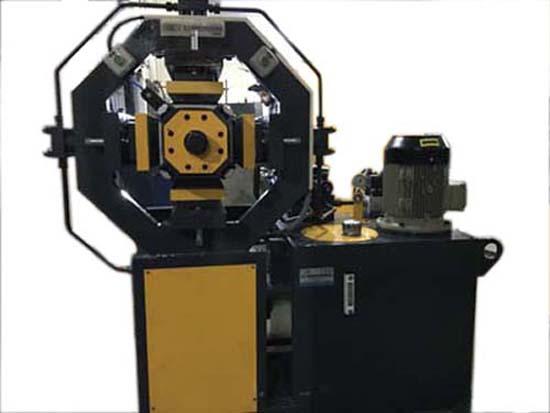

STRETCH FORMING M/C is used for making 15Kg square tin containers from circular seam welded container, with the additional making forming, side stiffening, embossing & vertical ribs.
The machine basically consists of two parts.
1. The die & forming device driven by hydraulic cylinders,
2. The hydraulic power pack (pressure control unit) to operate the die.
THE DIE:
The die consists of four arms operated by one hydraulic cylinder, which stretch the circular can into the square form. The mandrel remains still, with four male projection plates for the purpose of embossing. The machine is also fitted with four slides surrounding the still mandrel which carry matching female grooves. The slides are hydraulically operated by four hydraulic cylinders.
Monogram/symbol embossing can also be combined with operation (at extra cost).
POWER PACK:
The power pack consists of a hydraulic pump driven by a totally closed 7.5 h.p. induction motor. The pump is capable of developing pressure of 175 bar kg/cm. sq. The power pack also consists of a pressure control unit with two relief valves.
SPECIFICATIONS:
Motor : 5.5 KW (7.5HP)
Control: Electronically Operated
Hydraulic Valves ( Solenoid Operated)
Tank Cap. : 200 Ltr. (Approx)
Hydraulic Pressure : 1000 - 3000 PSI
Net Weight : 1500 Kg (Approx)
|
