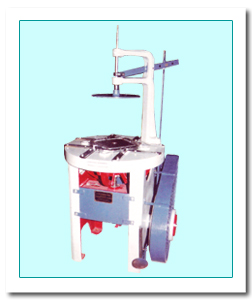

FLANGING MACHINE
The machine is used to flange both
ends of the container at a time. Also this machine gives a
perfect rectangular shape to the container body. The tools are
made out of WPS, (HCHC) material hardened and ground finished
for durability and high tolerance. The machine is made of C.I.
casting bed & steel base. The machine is capable for inter
changing the tools/ die for different size of container.
| Model No.
|
: |
GS-FLM |
|
Max. Square of Container |
: |
235 mm |
|
Min. Square of Container |
: |
123 mm |
|
Max. Height |
: |
380 mm |
|
Min. Height |
: |
To any standard |
Overall
Dimensions
H X W X L |
: |
1490 X 840 X 840 |
|
Input Power Supply |
: |
0.75 KW (1HP) |
|
Net Weight |
: |
700 kg. Approx. |
|
 |
| |
|

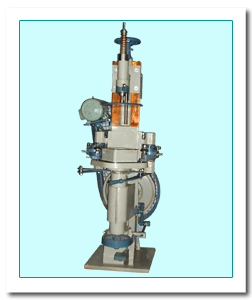

SEAMING MACHINE
This machine is used for seaming
the top & bottom of the tin container with help of two rollers.
The seaming machine chuck revolves around the rollers to seam
the top and bottom to the container with help of handle one side
one time. The machine is designed in steel body with thrust
bearing in the arms for better performance and long life. This
machine have good production & can be used for different sizes
by inter changing the seaming chuck.
| Model No.
|
: |
GS-SEM |
|
Max. Diagnol |
: |
235 mm |
|
Min. Diagnol |
: |
128 mm |
|
Max. Container Height |
: |
380 mm |
|
Min. Container Height |
: |
150mm |
Overall Dimensions
H x W x L |
: |
1920 X 520 X
1080 |
|
Input Power Supply |
: |
1.5 KW (2HP) |
|
Net Weight |
: |
800 Kg. Approx. |
|
 |
| |
|

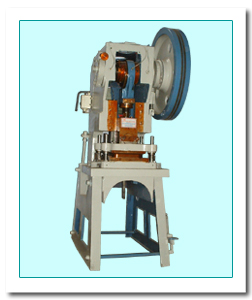

TOP BOTTOM POWER PRESS
American type power press with 40 ton capacity.
This power press is ungeared with heavy wheel for easy punching
& embossing into the tin sheet. The power press is designed for
high accuracy to run the pillar set die. The machine is
mechanically clutch operated with foot paddle.
| Model No.
|
: |
GS-TBPP |
|
Size of Blamking |
: |
120-250 mm |
|
Sheet Thickness |
: |
0.20-0.33 |
Overall Dimensions
H X W X L |
: |
1950 X 820 X
1200 |
|
Input Power Supply |
: |
2.5 KW (3 HP) |
|
Output |
: |
5,500-6000 stroke in 8 hrs. |
|
Press Capacity |
: |
40 Ton |
|
Net Weight |
: |
1700 Kg.
Approx. |
|
 |
|
